2016 Chevrolet Malibu Hybrid - Lithium-Ion Battery System Cutaway

By William Maley

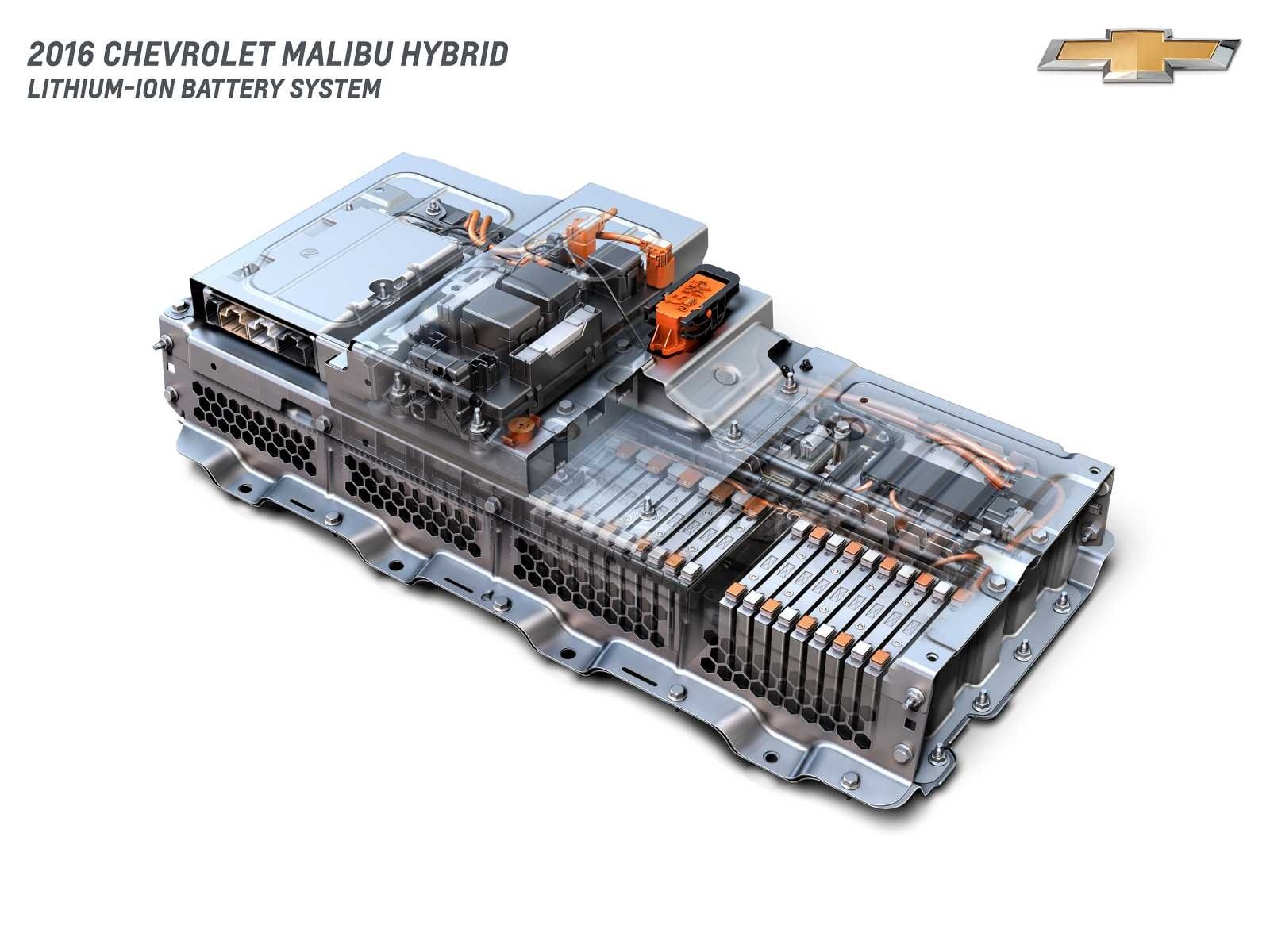

An official Chevrolet cutaway illustration reveals the 2016 Malibu Hybrid's lithium-ion battery system, showing rows of battery cells, power control modules, and orange high-voltage wiring. The 1.5 kWh battery pack is mounted under the rear seat to preserve trunk space and contributes to the Malibu Hybrid's EPA-rated fuel economy.
  •
